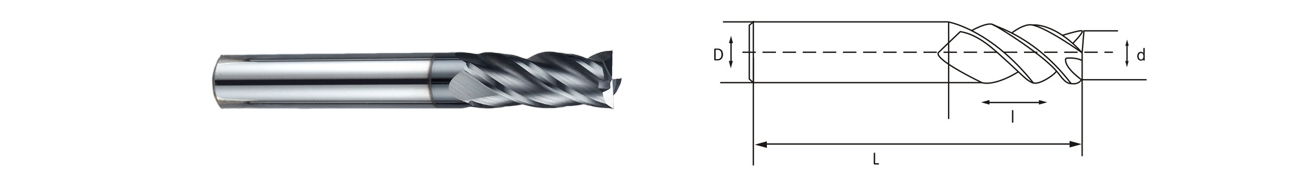

WH450 Flat knife
The Rods are made by Germany PVA with high pressure sintering it is most suitable for nonferrous metla and common die steels.
| Item No. | Cutter Diameter | Length of Cut | Overall Length | Shank Diameter |
Standard Type |
1.0 | 3.50 | 50.00 | 4.00 |
| 1.5 | 4.50 | 50.00 | 4.00 | |
| 2.0 | 6.00 | 50.00 | 4.00 | |
| 2.5 | 7.00 | 50.00 | 4.00 | |
| 3.0A | 8.00 | 50.00 | 3.00 | |
| 3.0B | 8.00 | 50.00 | 4.00 | |
| 4.0 | 12.00 | 50.00 | 4.00 | |
| 1.0 | 3.50 | 50.00 | 6.00 | |
| 1.5 | 4.50 | 50.00 | 6.00 | |
| 2.0 | 6.00 | 50.00 | 6.00 | |
| 2.5 | 7.00 | 50.00 | 6.00 | |
| 3.0 | 8.00 | 50.00 | 6.00 | |
| 4.0 | 12.00 | 50.00 | 6.00 | |
| 5.0 | 13.00 | 50.00 | 5.00 | |
| 5.0 | 13.00 | 50.00 | 6.00 | |
| 6.0 | 15.00 | 50.00 | 6.00 | |
| 8.0 | 20.00 | 60.00 | 8.00 | |
| 10.0 | 30.00 | 75.00 | 10.00 | |
| 12.0 | 30.00 | 75.00 | 12.00 | |
| 14.0 | 45.00 | 100.00 | 14.00 | |
| 16.0 | 45.00 | 100.00 | 16.00 | |
| 18.0 | 50.00 | 100.00 | 18.00 | |
| 20.0 | 50.00 | 100.00 | 20.00 | |
Lengthen |
4.0 | 12.00 | 75.00 | 4.00 |
| 4.0 | 12.00 | 100.00 | 4.00 | |
| 6.0 | 15.00 | 75.00 | 6.00 | |
| 6.0 | 20.00 | 100.00 | 6.00 | |
| 6.0 | 30.00 | 100.00 | 6.00 | |
| 6.0 | 20.00 | 150.00 | 6.00 | |
| 6.0 | 30.00 | 150.00 | 6.00 | |
| 8.0 | 20.00 | 75.00 | 8.00 | |
| 8.0 | 25.00 | 100.00 | 8.00 | |
| 8.0 | 50.00 | 100.00 | 8.00 | |
| 8.0 | 25.00 | 150.00 | 8.00 | |
| 8.0 | 50.00 | 150.00 | 8.00 | |
| 10.0 | 30.00 | 100.00 | 10.00 | |
| 10.0 | 50.00 | 100.00 | 10.00 | |
| 10.0 | 30.00 | 150.00 | 10.00 | |
| 10.0 | 50.00 | 150.00 | 10.00 | |
| 12.0 | 35.00 | 100.00 | 12.00 | |
| 12.0 | 50.00 | 100.00 | 12.00 | |
| 12.0 | 35.00 | 150.00 | 12.00 | |
| 12.0 | 50.00 | 150.00 | 12.00 | |
| 14.0 | 50.00 | 150.00 | 14.00 | |
| 14.0 | 75.00 | 150.00 | 14.00 | |
| 16.0 | 50.00 | 150.00 | 16.00 | |
| 16.0 | 75.00 | 150.00 | 16.00 | |
| 18.0 | 50.00 | 150.00 | 18.00 | |
| 18.0 | 75.00 | 150.00 | 18.00 | |
| 20.0 | 50.00 | 150.00 | 20.00 | |
| 20.0 | 75.00 | 150.00 | 20.00 |
