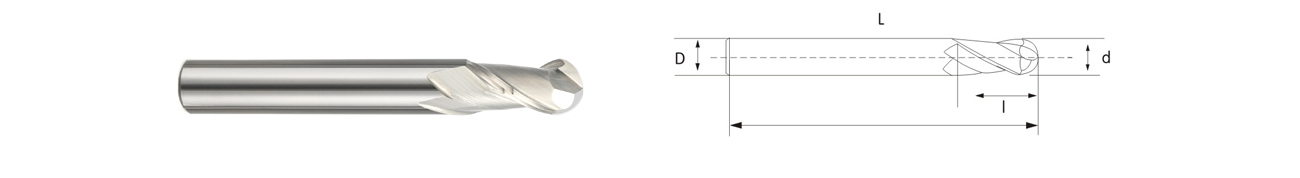

WH450 Ball cutter for aluminum alloy
| Item No. | Cutter Diameter | Length of Cut | Overall Length | Shank Diameter | ||
Standard Type |
R0.5 | 2.00 | 50.00 | 4.00 | ||
| R0.75 | 3.00 | 50.00 | 4.00 | |||
| R1.0 | 4.00 | 50.00 | 4.00 | |||
| R1.25 | 5.00 | 50.00 | 4.00 | |||
| R1.5 | 6.00 | 50.00 | 3.00 | |||
| R1.5 | 6.00 | 50.00 | 4.00 | |||
| R2.0 | 8.00 | 50.00 | 4.00 | |||
| R0.5 | 2.00 | 50.00 | 6.00 | |||
| R0.75 | 3.00 | 50.00 | 6.00 | |||
| R1.0 | 4.00 | 50.00 | 6.00 | |||
| R1.5 | 6.00 | 50.00 | 6.00 | |||
| R2.0 | 8.00 | 50.00 | 6.00 | |||
| R2.5 | 10.00 | 50.00 | 5.00 | |||
| R2.5 | 10.00 | 50.00 | 6.00 | |||
| R3.0 | 12.00 | 50.00 | 6.00 | |||
| R4.0 | 16.00 | 60.00 | 8.00 | |||
| R5.0 | 20.00 | 75.00 | 10.00 | |||
| R6.0 | 25.00 | 75.00 | 12.00 | |||
| R8.0 | 32.00 | 100.00 | 16.00 | |||
| R10.0 | 40.00 | 100.00 | 20.00 | |||
Lengthen |
R2.0 | 8.00 | 75.00 | 4.00 | ||
| R2.0 | 8.00 | 100.00 | 4.00 | |||
| R3.0 | 12.00 | 75.00 | 6.00 | |||
| R3.0 | 12.00 | 100.00 | 6.00 | |||
| R3.0 | 12.00 | 150.00 | 6.00 | |||
| R4.0 | 16.00 | 75.00 | 8.00 | |||
| R4.0 | 16.00 | 100.00 | 8.00 | |||
| R4.0 | 16.00 | 150.00 | 8.00 | |||
| R5.0 | 20.00 | 100.00 | 10.00 | |||
| R5.0 | 20.00 | 150.00 | 10.00 | |||
| R6.0 | 25.00 | 100.00 | 12.00 | |||
| R6.0 | 25.00 | 150.00 | 12.00 | |||
| R8.0 | 32.00 | 150.00 | 16.00 | |||
